Mini 3G-SDI Video Extender with SDI Loop Output 1080P 3G-SDI Fiber Converter Extension of Distances Up to 20km
Mini 3G-SDI Video Extender with SDI Loop Output 1080P 3G-SDI Fiber Converter Extension of Distances Up to 20km
Couldn't load pickup availability
Overview:

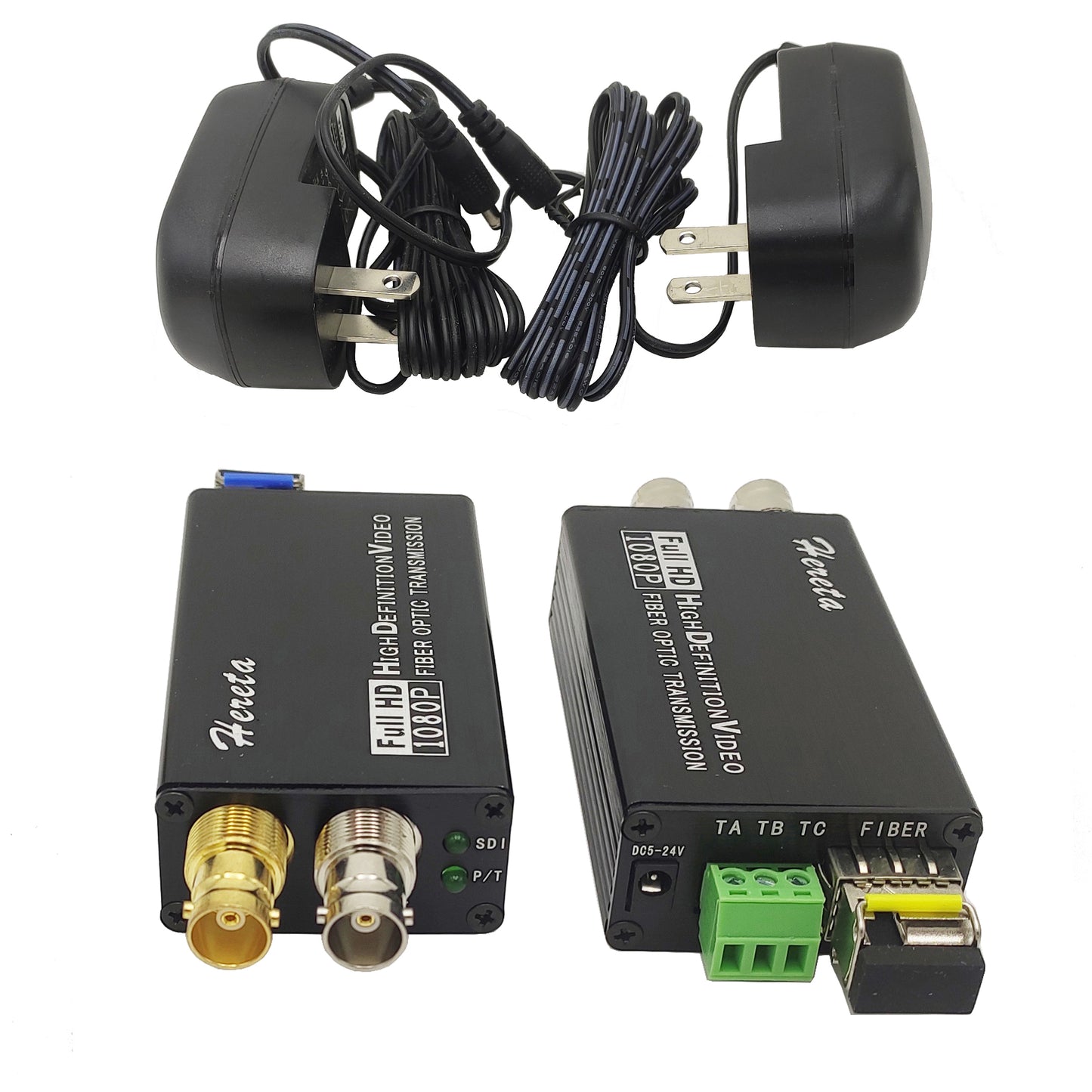

LNK-M3G-1V Series Mini-type 3G/HD-SDI Fiber Converter supports 1-channel 3G/HD-SDI Video (audio embedded) & Tally or Reverse RS485 signal transmitted via fiber optical cable, and monitor the signal locally over a 3G/HD-SDI loop output. E-link 3G/HD-SDI Video over Fiber Converters includes one transmitter and one receiver for 1080P 3G/HD-SDI signal.
Application:
►Animal films recording
►Live events broadcast over fiber
►High performance(error-free) surveillance networks in Army or security;
►Large video wall system
►Intelligent Traffic Monitoring System
►Security systems
►Industrial monitoring (Electricity, Chemistry, Steel, Oil, Railway & etc)
►Military Monitoring (Warehouse, Border, Guards, etc)
►Stadium (For LIVE HD video, audio transmission)
Features:
- Each channel includes 8-channel audio embedded;
- Automatic cable equalization, used for all rate below 3.2 Gb/s (Belden 1694A);
- Automatic reclocking 270Mbit/s - 1.48Gbit/s - 3Gbit/s
- Directly compatible with 3G/HD-SDI camera systems
- Long transmission capability up to 20 km
- Hot swap and hot plug;
- Handle all Pathological patterns, fully digital non-compression broadcast level transmission;
- LED Status Indication to monitor the working conditions;
- Super optic dynamic range and free of adjustment;
- Industry level ultra-broad temperature range (-40℃~+70℃), adaptable to various environments.
- Supported Resolution: 625/25PAL;525/29.97NTSC;525/23.98NTSC; 720p50; 720p59.94; 1080P23.98/24/30/50/60; 1080i 23/24/30/50/59.94;
Technical Indexes:
|
Fiber Optical interface |
|
|
Fiber interface |
Simplex LC |
|
Transmission distance |
550m-20Km |
|
Wavelength |
1310nm/1550nm |
|
Video |
|
|
Video interface |
BNC |
|
Video input/output impedance |
75Ω |
|
Video input/output voltage |
Typical:1Vpp, Min 0.5Vpp, Max 1.5Vpp |
|
Video Bits Rate |
Max 3.2Gb/s |
|
Differential gain (10%～90% APL) |
<1% |
|
SDI format support |
625/25 PAL |
|
525/29.97 NTSC, 525/23.98 NTSC |
|
|
720p50, 720p59.94 |
|
|
1080i 23/24/30/50/59.94 |
|
|
1080P 23.98/24/30/50/60 |
|
|
Video SDI standard |
270Mbps (SD-SDI), 1.485Gbps/M(HD-SDI) |
|
SMPTE425M3Gb/s Mapping(3G-SDI) |
|
|
SMPTE424M 3Gb/s serial interface(3G-SDI) |
|
|
Data |
|
|
Physical interface |
Industrial standard screw terminal |
|
Data type |
Tally or Reverse RS485 |
|
Frequency/Rate support |
Max. 115200bps for RS422 Max. 57600bps for RS485 |
|
BER |
<10ˉ9 |
|
Electrical |
|
|
Power adaptor |
DC 5~25V |
|
Power consumption |
<5W |
|
LED Indicator |
|
|
SDI |
SDI video |
|
P/T |
Power Supply |
|
Mechanical |
|
|
Dimensions (LxWxH) |
80 x 42 x 22 mm |
|
Weight |
1KG/pair |
|
Casing |
Aluminum Case |
|
Mounting Options |
Desktop |
|
Environmental |
|
|
Working Temperature |
-20℃～+70℃ |
|
Storage Temperature |
-40℃～+80℃ |
|
Working Humidity |
0~95% |
|
MTBF |
≥100000 hours |
Materials
Materials
Aluminum
