Hardened Industrial Gigabit PoE+ Injector 12-48VDC Input (95W)
Hardened Industrial Gigabit PoE+ Injector 12-48VDC Input (95W)
Overview

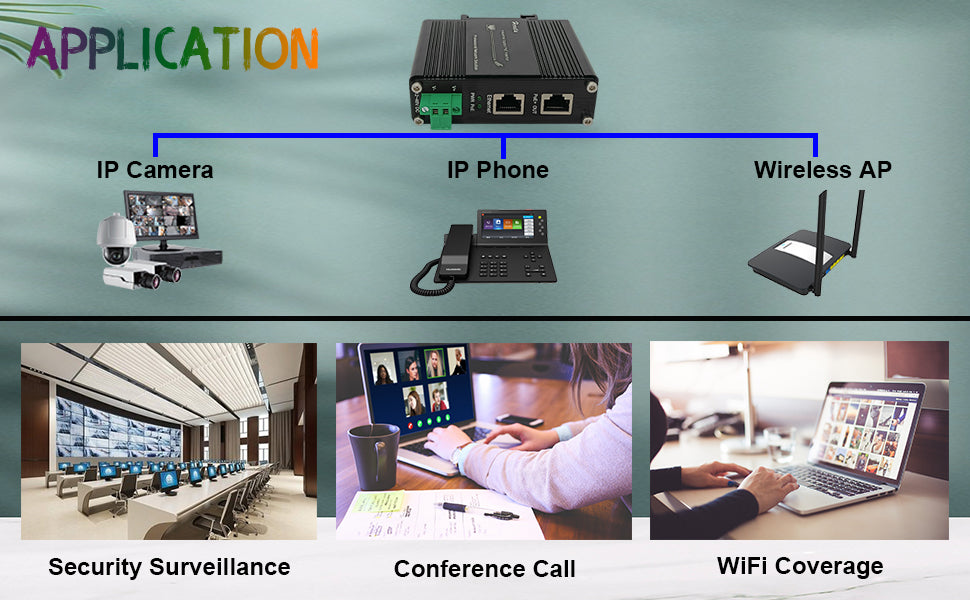

The LNK-INJ-48-95W product is an Industrial hardened Gigabit single-port PoE+ IEEE 802.3at / LTPoE++ 95W 10/100/1000Base-TX PoE Injector. It allows you to connect the PoE device such as camera and access point with a non PoE LAN switch within the distance of 100m. Both the Ethernet port (to switch) and the PoE Out port (to PoE device) support 10/100/1000Base-T and are compliant with IEEE 802.3ab. It provides 95W PoE output.
Features:

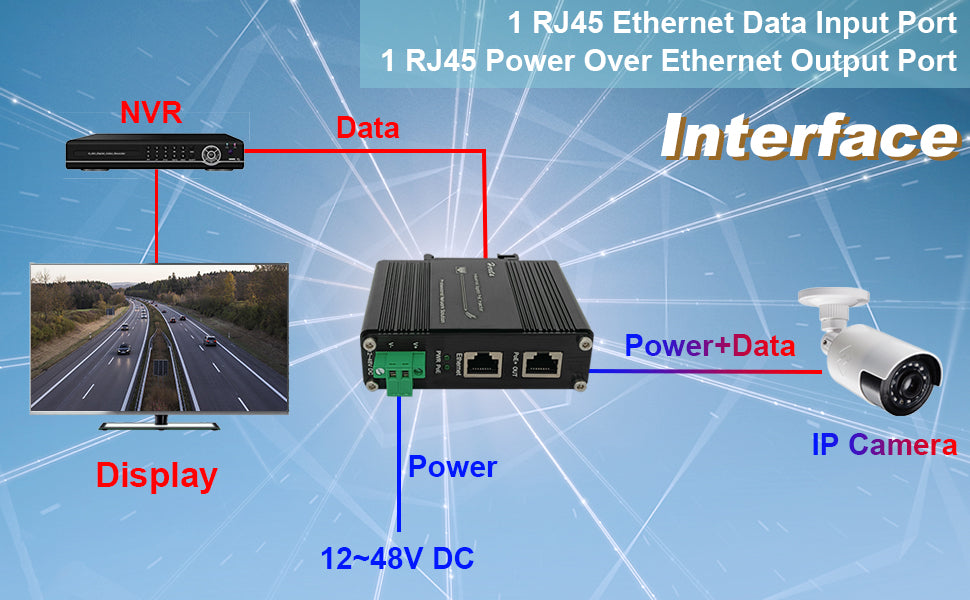

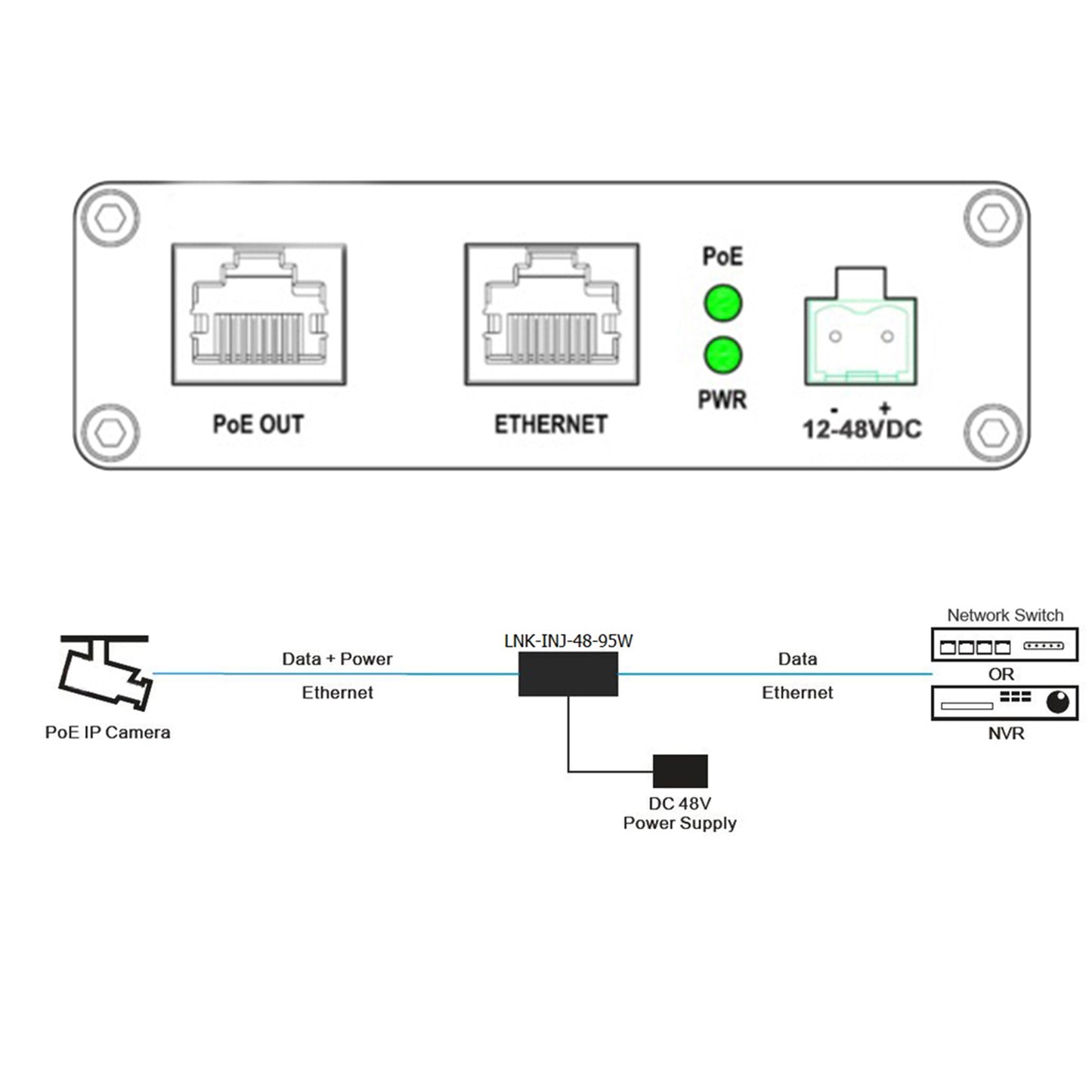

- 1 RJ45 Ethernet Data Input Port + 1 RJ45 Power Over Ethernet Output Port(Data + Power)
- Support 95W LTPoE++ Power Sourcing Equipment, compatible IEEE802.3at PoE+
- Support 10/100/1000Base-TX, extensive LED indicators for PoE diagnostics
- 12~48VDC Terminal Block Power inputs, DIN-Rail bracket installed, wall mount bracket is included
- Environmentally hardened -40°C to 80°C, (-40°F to 176°F) operating temperature
Technical Indexes:
Ethernet |
|
Standards: |
IEEE802.3i 10 BASE-T, IEEE802.3u 100 BASE-TX, IEEE 802.3ab Gigabit Ethernet |
IEEE802.3 x Flow Control |
|
Processing Type: |
Forward |
Half-duplex, Full-duplex |
|
Forward Filter Rate: |
1,488,000pps (1000Mbps) |
Cabling: |
1000Base-T: Cat5 or above |
Maximum Distance: |
Cat5 UTP up to 100m |
Connector: |
2x RJ45 |
Environmental |
|
Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
Relative Humidity: |
5% to 95% non-condensing |
MTBF: |
>200,000hrs |
Electrical and Mechanical |
|
Input Power: |
12~48VDC (Terminal Block) |
Power Consumption: |
100W Max. |
PoE: |
|
Standard: |
Data provide over pairs 1,2TX and 3,6RX |
Power over spare pairs 1,2,4,5(+) and 3,6,7,8(-) |
|
Max. Power per Port: |
95W Max per port (Alternative B Mode) |
LED Indicators: |
|
Power: |
Power Status |
PoE: |
PoE Status |
Dimensions (WxDxH): |
95 x 70 x 30 mm |
Weight: |
0.25Kg |
Casing: |
Aluminum Case |

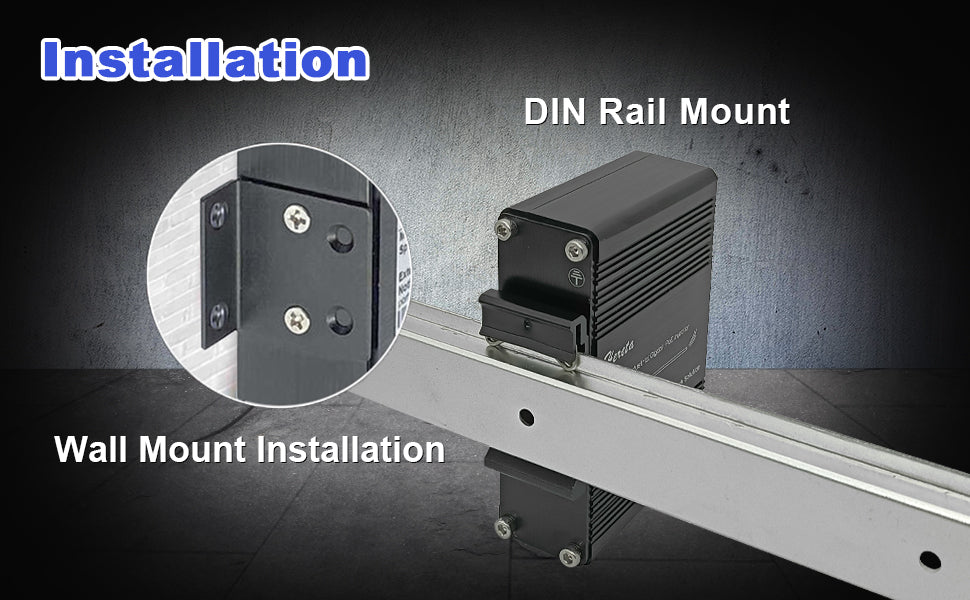

Mounting Options: |
DIN-Rail / Wall-mount |
Regulatory Approvals |
|
ISO9001 |
|
FCC part 15, Class A |
|
EN55022:2006+A1: 2007 Class A |
|
Surge Protection: |
|
RJ45: 1KV |
|
Power: 500W |
|
ESD: 4KV/8KV |
Materials
Materials
Aluminum
