About this item

• [Compact Design] The Dimension of mini 4K HDMI Fiber Converter is 3x1x0.7Inch, smaller than other similar ultra-compact design. The media extender is more easy to use, carry and installation
• [Uncompressed Transmission] Fiber Converter transmits uncompressed HDMI signal, supports single/multi modes up to 4K*2K@30Hz Resolution, data rates up to 10.3Gbps, transmission distance up to 20km over single-mode fiber cable. Processing and transmitting of image is reliable, high-performance and efficient
• [Excellent Quality] The HDMI optical transmitter and receiver are designed to transmit 1.4a compliant HDMI Video with embedded audio over optical fiber, No delay, No losses. It also supports DDC/CEC/HPD Signal, EMI/RFI Resistant, Hot-Pluggable, 850nm VCSEL and PIN photo detector, USB C connector for power input
• [Industrial Grade Design] The Video Extender is made of Aluminum Case, Dustproof, With reliable and simple operation against vibration and shock, and wide operation temperature range (14°F~140°F), humidity range (5% to 90% RH) for harsh environments, MTBF100,000 hours

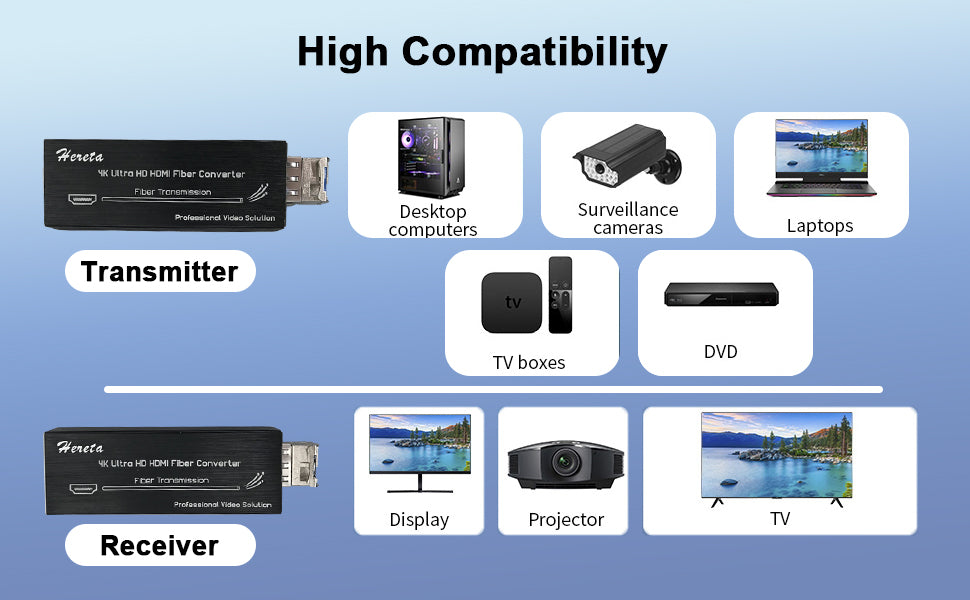

• [Wide Usage] Transmitter converts an HDMI signal to a single 10Gbps serial data stream for transmission over optical fiber. Receiver converts the serial data back to an HDMI signal. This product is ideal for large-screen display, conferencing systems, home entertainment (HD DV, Blu-ray DVD, TV, projector) and so on

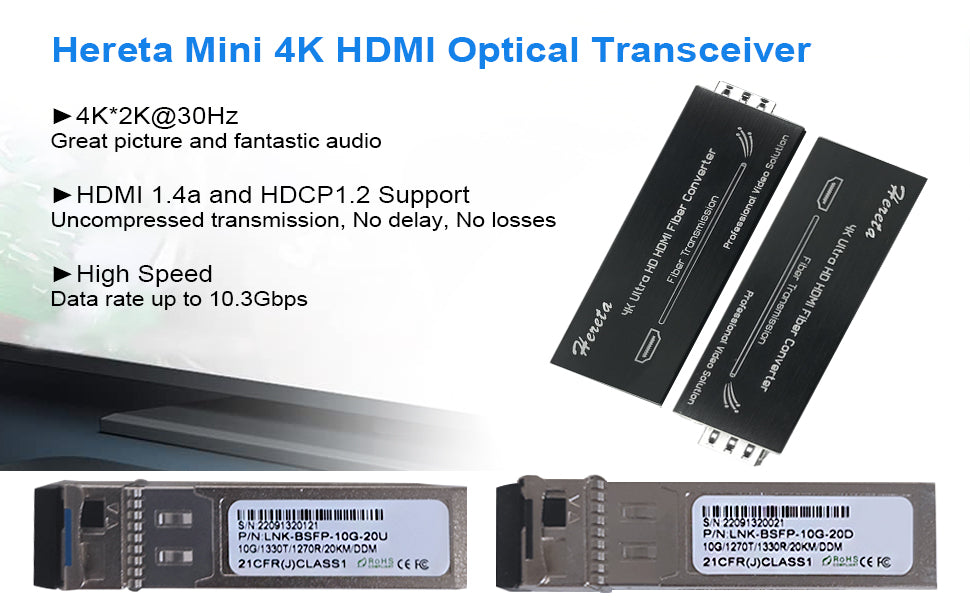

Hereta Mini 4K HDMI Optical Transceiver

The LNK-MH4K Series 4K HDMI Fiber Extender are designed to support transmission of an uncompressed lossless HDMI 1.4a signal over optical fiber up to distances of 20km, at a resolution of 4Kx2K.

The Transmitter converts an HDMI signal to a single 10Gb/s serial data stream for transmission over optical fiber. The Receiver converts the serial data back to an HDMI signal. The transceivers are RoHS compliant and lead-free per requirements in Europe and China. This product is ideal for large-screen display, conferencing systems and home entertainment and so on. The device has the ability of anti-interference, to ensure the stability of the signal.

Product Features:

► HDMI 1.4a and HDCP1.2 Support

► Uncompressed transmission, No delay, No losses

► DDC CEC HPD Signal Support

► Data rate up to 10.3Gbps

► Transmit up to 20km over fiber cable

► Supports All Modes up to 4K*2K@30Hz Resolution

► USB-C Connector for Power Input

► Hot-Pluggable, EMI/RFI Resistant

► Miniature form factor for ease of use and installation

► 850nm VCSEL and PIN Photo detector

► Operating Temperature: -10~60°C
