1080P HDMI KVM Fiber Extender Video Resolution Up to 2K@60Hz HDMI to Fiber Converter Transmission Distance Up to 20km 4.25Gbps Support USB Mouse Keyboard RS232 GPIO Signal Bidirectional Stereo Audio
1080P HDMI KVM Fiber Extender Video Resolution Up to 2K@60Hz HDMI to Fiber Converter Transmission Distance Up to 20km 4.25Gbps Support USB Mouse Keyboard RS232 GPIO Signal Bidirectional Stereo Audio
- 【Full HD 1080P Resolution】The HDMI Fiber Extender support video resolution up to 1920*1200P@60Hz; Special support 1600*1200@60HZ. High compatibility, can auto-match source and display device. Support HDMI Loop out. Built-in automatic adjustment system, make the image smooth, clear and stable
- 【Transmit over Fiber 20KM】KVM Fiber Extender transmits Uncompressed HDMI video signals up to 20km over signal over single core single mode fiber optic cable, At the same time, the KVM Extender support external stereo audio bi-directional transmission, you will be absorbed in Real-time intercom with others on the other side far away
- 【Complies with Industry Standards】The HDMI Video Extender compliances with HDMI 1.4 and HDCP 1.2 standard. Support EDID, built-in ESD protection system, Support RS232 signal unidirectional transmission, baud rate self-adaptive, general-purpose input/output (GPIO) signal
- 【Support USB KVM】The HDMI KVM Fiber Converter with USB keyboard and mouse signal transmission function, you can control the PC, laptop or other devices with USB Mouse and Keyboard from remote end
- 【Usage scenarios】KVM Extender is simple to install, plug and play, it can be used for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security. It can be used in security surveillance, company Office, video conference, school teaching, medical treatment, home theater and so on

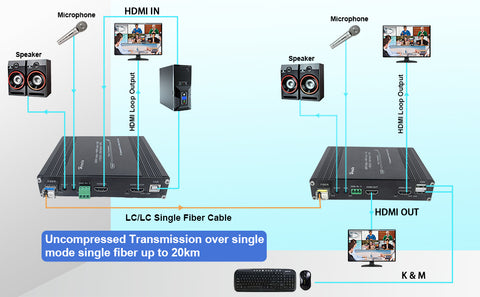

Transmits HDMI video signals and audio up to 20km over a single fiber optic cable
The LNK-KVM-HDMI-1D1BA1GO Fiber optic extender provides extension of HDMI signals long distances over one fiber optic cable, it supports high resolution up to 1080P, KVM, RS232, GPIO signal and external audio transmission function. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
Product Features:
► Transmits HDMI video signals and audio up to 20km over a single fiber optic cable;
► Support video resolution up to 1920*1200P@60Hz; Special support 1600*1200 @60HZ
► Support USB keyboard and mouse signal transmission;
► Support external stereo audio bi-directional transmission;
► Support RS232 signal unidirectional transmission, baud rate self-adaptive;
► Support general-purpose input/output (GPIO) signal;
► Compliance with HDMI 1.4 and HDCP 1.2 standard;
► High compatibility, auto-match source and display device;
► Built-in automatic adjustment system, make the image smooth, clear and stable;
► Built-in ESD protection system;
► Simple to install, plug and play
Materials
Materials
Aluminum
